with snap-in lock and crimp sleeve

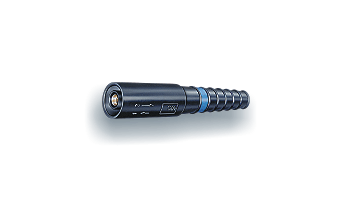

Model KBT...AR-N/... sockets are sockets with the MC-Locking system and for crimping onto highly flexible Cu conductor with cross sections of 25mm˛ to 120mm˛.
This socket is suitable for mating with either plug receptacles or plugs model KST...AR-N/....
Used with a panel receptacle it acts as an appliance coupler, with cable plugs an adapter jack. To assemble, first push the insulating sleeve onto the cable.
Then crimp and push the insulator over the crimp sleeve until it engages.
Colour coding is accomplished with coloured adhesive tape applied to the black sleeve. All colours in accordance with colour code.
|
