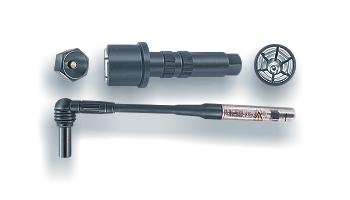

Clamping contact adapter for M12 hex. screw heads GKA/M12/6
together with S-SL/PF10x38 safety fuse cable
For rapid and safe contact of screw heads (hexagonal M12) for voltage and current measurements. (Special designs for M8 and M10 screw heads on request). Using the SS-GKA tool, the hexagonal clamping jaws in the screw head adapter clamp firmly onto the screw head being contacted. The axial connection is made by means of a 6mm coupling socket with locking device. To protect personnel and electrical devices, Multi-Contact recommend the safety fuse cable S-SL/PF10x38, with integrated fuse. (Delivered without HCR fuses). Additionally the SS-GKA tool can also be used to change the fuse.
