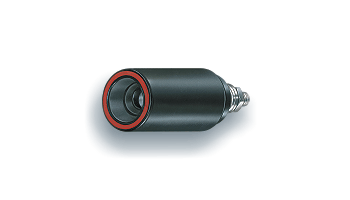

Safety surface-mounting sockets
AB6AR-S/9,4 and AB6AR-S/12,4
with snap-in lock and threaded stud
Type AB6AR-S/... safety surface-mounting sockets are insulated sockets for housings and front panels. They have been specially designed to replace binding posts that no longer conform to current safety requirements. The fixing hole diameters of 9,4mm and 12,4mm are therefore in line with those of the most widely used binding posts. Mating plugs with suitable locking devices can be snap-locked into the socket. The internal connection is made with a threaded stud M6 carrying nuts and washers for the connection of cables fitted with lugs.
