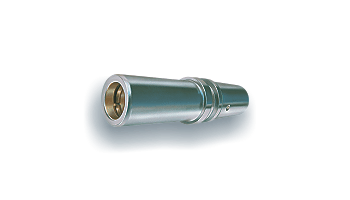

Sockets BP...AR-N
with snap-in lock and crimp connection
MC-Sockets BP...AR-N are sockets with snap-in locks and they lock automatically when connected. Plugs S...AR-N or SP...AR-N are inserted only so far that the ring snaps-in. To release, lightly turn and push-in plug, then pull-out. BP...AR-N sockets have a crimp connection suitable for flexible and highly flexible Cu-cable. Multi-Contact recommends an hexagonal crimp. Indent crimping is also possible. Cables with compacted conductors need a special crimping sleeve. Insulating sleeves and cable insulators are also available for these sockets.
