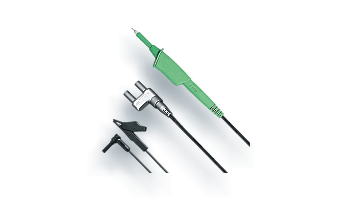

Safety Demodulator Test Probe Set
IsoprobeŽII - DEM-4
■ Isoprobe II - DEM-4: Safety demodulator test probe with highly flexible coaxial connecting lead and choice of Ř 4mm safety double plug. Ř 2mm safety socket for reference lead connection in the handling part.
■ GM200: Reference lead with crocodile clip
The demodulator test probes are designed for measurements on high-frequency signals using an ordinary multimeter. Allow the measurement of very small AC voltages at frequencies ranging from 100 kHz to 1000 MHz. Conversion is effected by rectification and filtering in the probe.
