Special Design

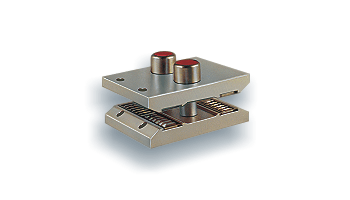

Double fork plugs type GSRD are designed to contact busbars made of copper or aluminium, as used in slide-in rack systems. They are plugging elements for connecting 5mm, 6mm and 10mm thick busbars. The 4 standard versions are 25mm, 50mm, 75mm and 100mm wide. They consist of two spring-loaded contact plates made of aluminium, silver-plated and fitted with the MC-Multilam La-Cu. Ends of busbars should be silver-plated in the contact areas.
