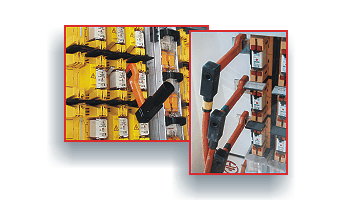

For rapid and safe contact of busbars in power distribution plants, power generation units, mobile transformers, standby power packs, etc.
The FSA20... is simply clamped to the flat busbars. Optimal application force is obtained with the FSA20-WZ tool, with its integrated torque wrench.
Contact is made with the MC-Multilam for normal copper rails (FSA20K...) or, for aluminium and oxidized rails, with a contact pin which removes any
contamination (FSA20A...). Touch protected (IEC-Test finger) in unplugged condition, in accordance with EN60529 and DIN/VDE0470, part 1/11.92 standards.
|
