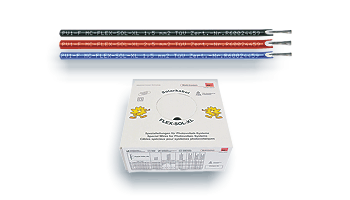

New Solar Cable
FLEX-SOL-XL
Single-pole, double insulated solar cable with fine-wire copper strand. The robust, flexible and space-saving design of FLEX-SOL-XL ensures constant electrical and mechanical properties during the whole life of the PV installation.
Approvals


TÜV certified according to the latest regulations
UL approval in preparation
Conductor

Wire class 5,
tinned, in accordance to DIN VDE 0295
Insulation



polyolefin copolymer, chemically linked; inner insulation: natural;
sheath insulation: with colour patch (black, red or blue)
Temperature range -40°C to +120°C (permanent)
Resistance to environmental influences
UV, ozone and hydrolysis-resistant
