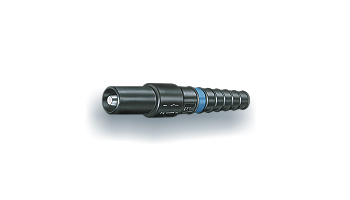

Plugs KST...AR-N/...

with snap-in lock and crimp sleeve Model KST...AR-N/... plugs are plugs with the MC-Locking system. The plugs have crimp sleeves for highly flexible Cu conductors with cross- sections of 25mm² to 120mm². For mounting, first push the insulating sleeve onto the conductors. Then crimp the crimp sleeve. Finally push the insulating sleeve over the crimping sleeve until it engages. Colour coding is possible with coloured adhesive tape on the black sleeve. All colours in accordance with colour code.
