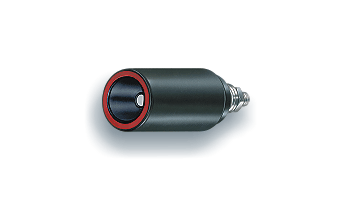

Safety surface-mounting plugs
AS6AR-S/9,4 and AS6AR-S/12,4
with snap-in lock and threaded stud
Model AS6AR-S/... safety surface-mounting plugs are insulated plugs for housings and front panels. They have been specially designed to replace binding posts that no longer conform to current safety requirements. The fixing hole diameters of 9,4mm and 12,4mm are therefore in line with those of the most widely used binding posts. Mating sockets with suitable locking devices can be snap-locked into the plug. They also mate with 4mm MC-Safety plugs, because the 6mm plug has a 4mm socket hole. The internal connection is made with a threaded stud M6 carying nuts and washers for the connection of cables fitted with lugs.
