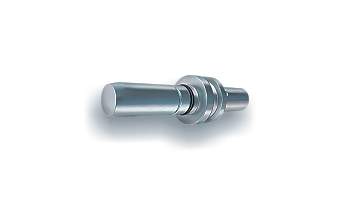

Plugs SP...AR-N
with snap-in lock and crimp connection
MC-Plugs type SP...AR-N are suitable for all sockets with a snap-in lock and with the corresponding nominal diameter. SP...AR-N plugs have a crimp connection suitable for flexible and highly flexible Cu-cables. Multi-Contact recommends an hexagonal crimp. Indent crimping is possible. Cables with compacted conductors need a special crimping sleeve. To lock, the plug is inserted into the socket until the snap-in lock engages. To release, the plug is lightly turned and pushed further in, then pulled out. Insulating cable sleeves are also available for these plugs.
